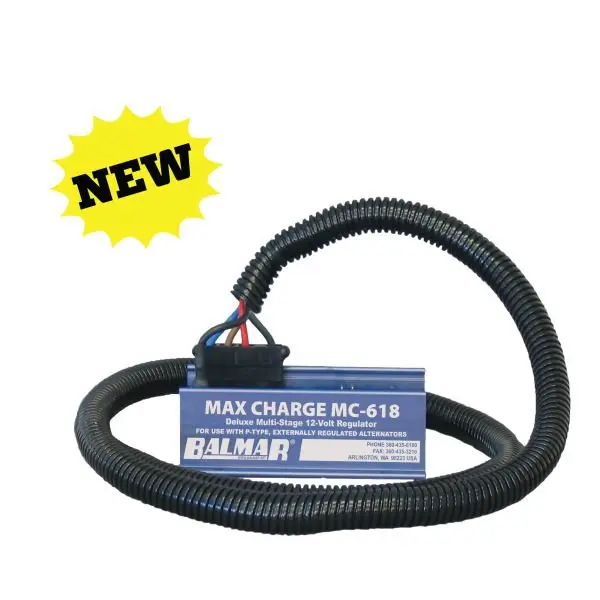

Balmar MaxCharge MC-618 12V Voltage Regulator w/Harness

Balmar MaxCharge MC-618 12V Voltage Regulator w/Harness

(1 review)
Balmar's new MaxCharge MC-618 12 volt marine voltage regulators replace the MC-612 and MC-614, and feature custom-selectable preset programs for nine battery technologies - standard flooded; deep-cycle flooded; gel; AGM; spiral-wound; LiFePO4; and Carbon Foam AGM - plus a default factory safe program and a separate program for vessels with voltage sensitive halogen systems. Advanced programming mode adds even greater user control.

Balmar has upgraded its legendary MC-614 Voltage Regulator to communicate with the SG200 Battery Monitor!  Now you can see how the New MC-618 Regulator is directing your alternator charging activity from either the SG200 2″ Color Display and/or the optional Bluetooth® Smartphone App.  Basic setup functions can be accomplished from the SG200 Color Display, Smartphone App or the traditional on-regulator programming tool.  Advanced Programming functions are available and easily configured from the Bluetooth® Smartphone App.

Features
  • Monitor Alternator/Regulator Activity from the SG200
  • Setup Regulator from 2″ Color Display or the Smartphone App
  • Advanced Programming from the Smartphone App
  • All the Same Regulation Features as the MC-614
  • New Carbon Foam AGM Battery Profile
  • Improved High Temperature Alternator Control
  • Protects Lithium Batteries below Freezing Temperatures
    •
  • 9 Selectable Programs for Marine Batteries (including LiFePO4 and Carbon Foam AGM)
  • 15 Amp Maximum Field Current
  • Advanced Programming Modes
  • Alternator & Battery Temperature Sensing & Control
  • Exclusive Belt Load Manager Function
  • Bright LED Display and Easy Programming Mode
  • Can be Used in Twin-Engine Applications with Centerfielder II
Bluetooth Option
Add the Optional Bluetooth® Gateway to Enable Advanced Programming
  • Configure ALL Regulator Parameters
  • Save and Recall Regulator Programs

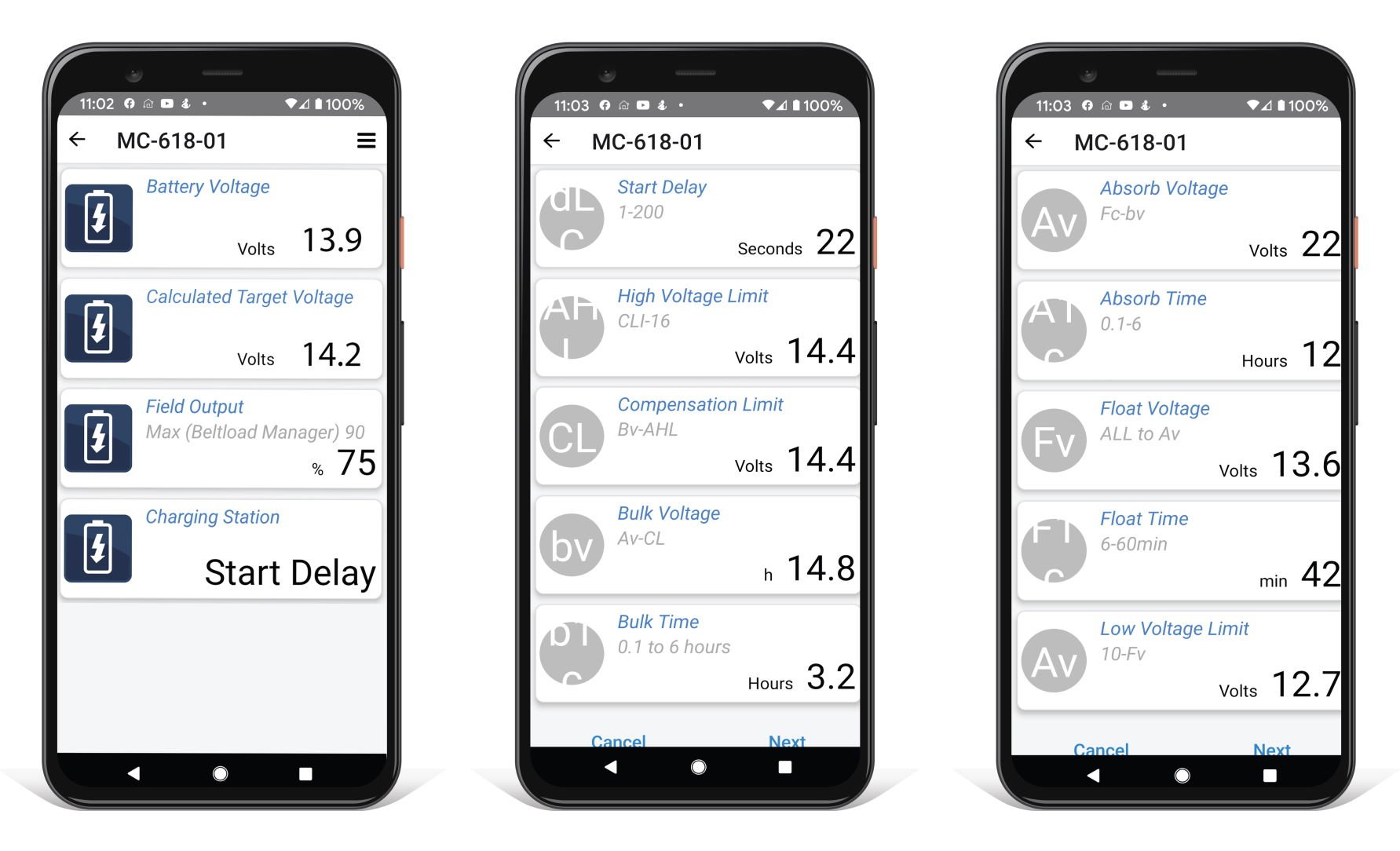

  • Monitor Regulator Performance from your Smartphone
  • Collect and Share Diagnostic Information
SmartLinkTM Networking
Monitor your Alternator’s Performance with Real-Time Data
  • Charging Stage
  • Compare Actual Voltage against Target Voltage
  • Monitor Field Output Percentage
  • Set Maximum Field Percentage
The MC-618 comes with a cable adapter for the SmartLinkTM Network at no additional charge.  Merely purchase a 5M (SG2-0403) or 10M (SG2-0400) data cable to connect to the Network
.Balmar MC-618 SG200 Network Example
Use The SmartLinkTM Network for Charging and Monitoring

  • Build your own charging and battery monitoring network!
  • Add Color Displays for viewing data in different locations.
  • All charging and battery information can be displayed anywhere on the SmartLinkTM Network
  • SG200 Firmware upgrades are available via downloads through the Smpartphone App and Bluetooth® Gateway.
  • Dual engine applications are easily supported by connecting both MC-618 regulators to the SmartLinkTM Network.
  • Add SmartShunts if you have multiple banks.
    • Stern or Bow Thruster Banks
    • House Bank #2



$ 328.00 $ 328.00 $ 367.00
$ 328.00 $ 367.00

  • Brand
  • Voltage
Contact Us

Internal Reference: BAL-MC-618-H

Specifications

Brand Balmar
Voltage 12 VDC
