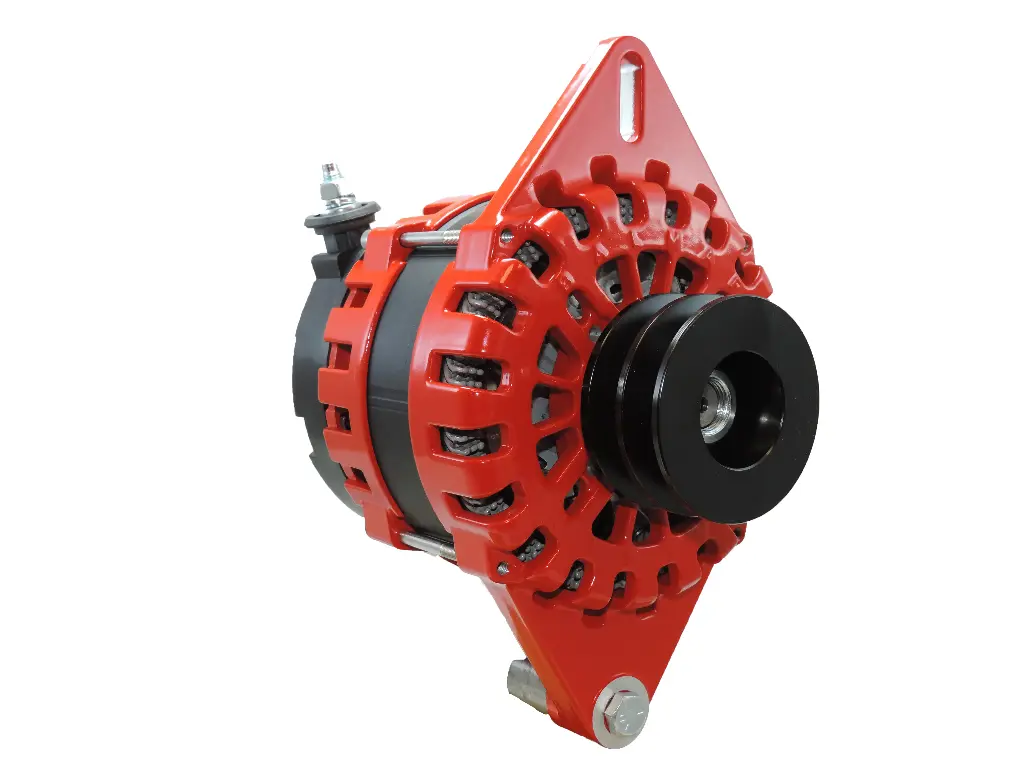

Balmar XT-Series Marine Alternator, 12 V, 250 Amp, Motorola/Delco
The New XT-Series 250 amp alternator family features a state-of-the-art, braided stator wire design to generate exceptional output in the smallest possible area. The XT-Series produces more power than our previous AT-Series 200A design and operates 5o-10oC cooler. In addition, Balmar added Smart Ready® internal regulator technology to provide an additional level of fault tolerance for cruising boaters.
Alternator, XT Series, 250 A, 12 V, Spindle Mount (Single Foot), 1-2in, Dual Groove Pulley, Case Ground
1" Motorola-Style Mounting; Typical for Westerbeke, Lehman, Hino & Pathfinder Engines
2" Delco-Style Mounting; Typical for Volvo Penta (Gas & Diesel), John Deere, Perkins, Mercruiser, Pleasurecraft, Crusader, Indmar, Marine Power & other GM-based Engines
Replaces
AT-SF-200-12-IG, AT-SF-200-DV
Pulley Type | Manufacturer Part Number |
Dual V Groove | XT-SF-250-DV |
K-6 Serpentine | XT-SF-250-K6 |
J-10 AltMount | XT-SF-250-J10 |
Special Pulley | XT-SF-250-SP |
