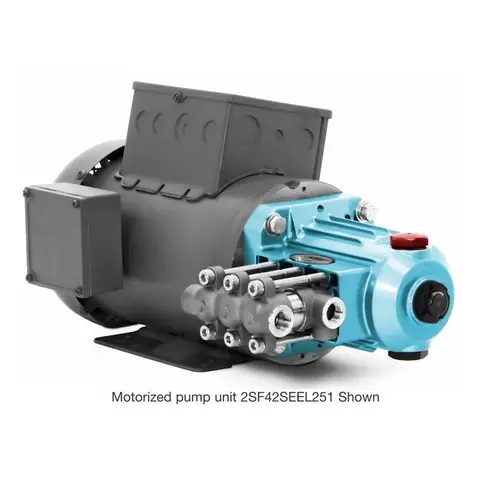

CAT Pump & Motor Assembly - 1.5 GPM, Ideal for Reverse Osmosis Applications Up to 300 Gallons Per Day
This is a triplex [three plunger rods] positive displacement, reciprocating, plunger pump, constructed of 316SS manifolds, 316 SS valve assemblies, solid ceramic plungers and standard NBR [Buna-N] seals and o-rings. This is a hollow-shafted pump, bolted directly to a CAT 8060 1.5 HP motor, providing easy, compact installation. The motor is wired for universal AC voltage connection.
| Pump Model | CAT 2SFQ15SEEL | | Motor Model | CAT 8110
or Equivalent |
| Max Flow | 1.5 gpm | | Horsepower | 1.0 |
| Min Pressure | 100 psi | | Phase | Single |
| Max Pressure | 1200 psi | | Voltage | 120 VAC 240 VAC |
| Inlet Port Size | 3/8" FPT 2X | | Frequency | 60 Hz |
| Discharge Port Size | 3/8" FPT 2X | | Full Load Amps | 14.0/7.0 |
| Material | 316 Stainless Steel (SS) | | RPM | 1725 |
| Drive Type(s) | Direct | | Capacitor Start | Yes |
| Dimensions (Assembly) | 17.1 L x 9.1 W x 8.2 H |
| Total Weight (Dry) | 42.9 Lbs |
