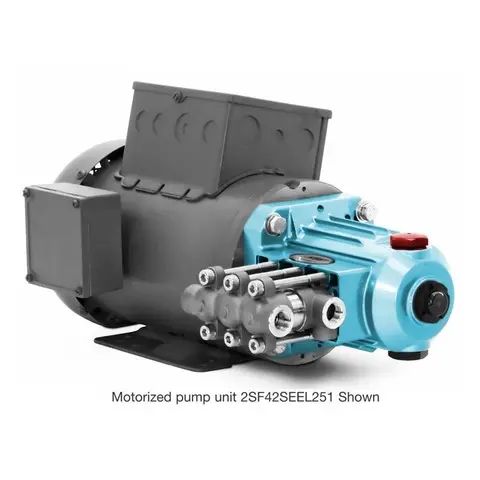

CAT Pump & Motor Assembly - 4.2 GPM, Ideal for Reverse Osmosis Applications
This is a triplex [three plunger rods] positive displacement, reciprocating, plunger pump, constructed of 316SS manifolds, 316 SS valve assemblies, solid ceramic plungers and standard NBR [Buna-N] seals and o-rings. This is a hollow-shafted pump, bolted directly to a CAT 8125 2.5 HP motor, providing easy, compact installation. The motor is wired for universal AC voltage connection.
| Pump Model | CAT 2SFQ42SEEL | | Motor Model | CAT 8125 (or Equivalent) |
| Max Flow | 4.2 gpm @ 60 Hz
3.5 gpm @ 50 Hz | | Horsepower | 2.5 |
| Min Pressure | 100 psi | | Phase | Single |
| Max Pressure | 1200 psi | | Voltage | 120 VAC 240 VAC |
| Inlet Port Size | 0.375 FPT | | Frequency | 60/50 Hz |
| Discharge Port Size | 0.375 FPT | | Full Load Amps | 23.0/11.5 (60 Hz)
23.6/11.8 (50 Hz) |
| Material | 316 Stainless Steel (SS) | | RPM | 1725 (60 Hz)
1450 (50 Hz) |
| Drive Type(s) | Direct | | Capacitor Start | Yes |
| Dimensions (Pump & Motor Assembly) | 19.0 L x 9.7 W x 9.6 H |
| Total Weight (Dry) | 61.8 Lbs |
