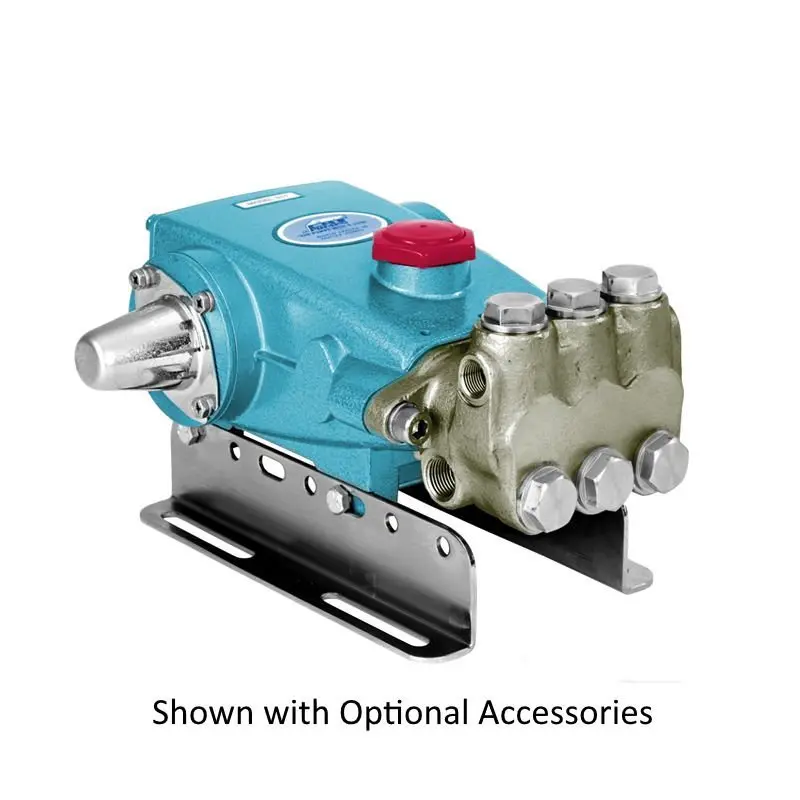

High-Pressure RO Pump - 5.0 GPM, 1725 RPM, NAB - CAT 357
CAT 357 High Pressure RO Pump for Watermakers up to 2200 GPD
This is a triplex [three plunger rods] positive displacement, reciprocating, plunger pump, constructed of Nickel Aluminum Bronze manifolds, 316 SS valve assemblies, solid ceramic plungers and standard NBR [Buna-N] seals and o-rings. The 1725 RPM permits multiple drive options including direct drive, flexible coupling, clutch or belt drive. The CAT model 357 high pressure pump is popular in seawater reverse osmosis, as well as car wash and pressure washer applications.
| Max Flow: | 5.0 gpm |
| Min Pressure: | 100 psi |
| Max Pressure: | 1500 psi |
| Inlet Port Size: | 1/2" FNPT X2 |
| Discharge Port Size: | 3/8" FNPT X2 |
| RPM: | 1725 |
| Drive Type(s): | Multiple |
| Material: | Nickel Aluminum Bronze (NAB) |
Internal Reference:
CAT-357
Specifications
| Brand | CAT |
| RO Flow Rate | 3.0-5.0 GPM |
| Product Bundle | No |
