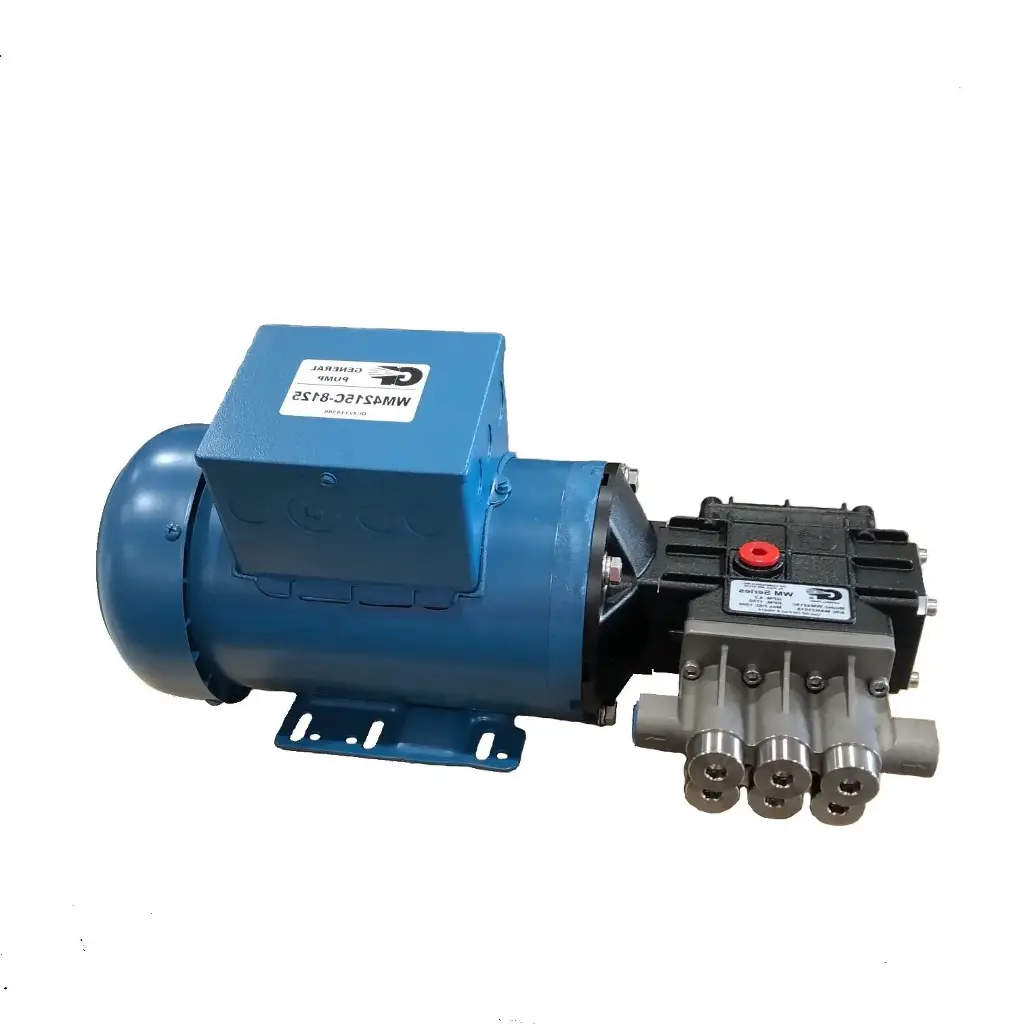

High-Pressure RO Pump & Motor, 4.2 GPM General Pump (LEFT HAND), with 2.5 HP Motor
General Pump & Motor Assembly - 4.2 GPM (LH), Ideal for Reverse Osmosis Applications
This is a triplex [three plunger rods] positive displacement, reciprocating, plunger pump, constructed of 316SS manifolds, 316 SS valve assemblies, solid ceramic plungers and standard NBR [Buna-N] seals and o-rings. This is a hollow-shafted pump, bolted directly to a 2.5 HP motor, providing easy, compact installation. The motor is wired for universal AC voltage connection.
Pump Model | General WM4215CL Left Hand |
Max Flow | 4.2 GPM |
Min Pressure | 100 psi |
Max Pressure | 1500 psi |
Inlet Port | 1/2" FNPT X2 |
Discharge Port | 3/8" FNPT X2 |
Material | 316 SS |
Drive Type | Direct |
Dimensions | 7.6 L x 9.2 W x 6.5 H |
Weight (Dry) | 13.5 Lbs |
Motor | 8125 or Equivalent |
Horsepower | 2.5 |
Phase | Single |
Voltage | 120/240 VAC |
Frequency | 60/50 Hz |
Full Load Amps | 23.0/11.5 (60 Hz) 23.6/11.8 (50 Hz) |
RPM | 1725 (60 Hz) 1450 (50 Hz) |
Capacitor Start | Yes |
Dimensions | 20 L x 10 W x 10 H (Approx) |
Total Weight (Dry) | 63 Lbs (Approx) |
Internal Reference:
GP-WM4215CL-8125
Specifications
| All | |
|---|---|
| Brand | General |
| Voltage | 120 VAC, 240 VAC |
| Product Bundle | Yes |
| Pumps | |
|---|---|
| RO Flow Rate | 3.0-5.0 GPM |
