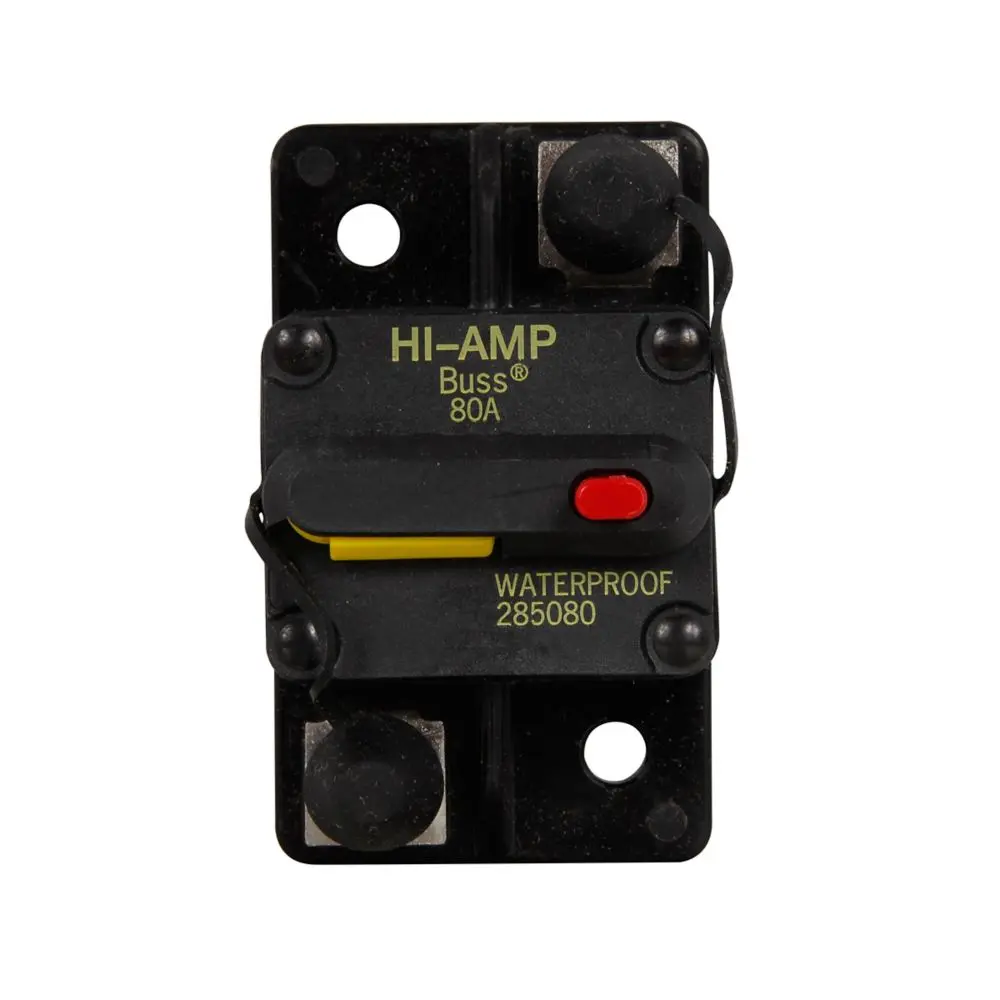

Hi-Amp Surface Mount Circuit Breaker - Select Amp Rating

Hi-Amp Surface Mount Circuit Breaker - Select Amp Rating

(0 review)

Hi-Amp Surface Mount Circuit Breaker - Up to 150 Amp Rating

This high-amp flush mount circuit breaker provides a great way to protect the entire length of cable, and have the ability to switch off the power.

Use one Hi-Amp Surface Mount Circuit Breaker on each main branch circuit to protect the main feed cables on their way to the battery switch. Also, use Hi-Amp Surface Mount Circuit Breakers on your main DC distribution bus to protect the cables for your alternator, inverter, solar controller, and more.

  • Flush (surface) mount with push-to-trip button
  • 42 VDC rated
  • Weatherproof
  • Marine rated
  • M6 threaded studs
  • Stainless steel hardware installed
  • Ignition Protected
  • Select amp rating below

About marine cable and current ratings:

  • Our cable size selections are based on marine boat cable rated for 105 degrees Celsius in bundles of up to three current-carrying conductors, and are listed for convenience only. The listed cable size is the minimum size for that fuse rating.
  • Do not attach wires smaller than the AWG rating listed for each fuse.
  • "Cool" applies to cables that do not run through engine spaces (mains or generator)
  • "Hot" applies to cables that terminate in, or pass through, engine spaces
  • If "Cool" or "Hot" is not specified, the cable is rated for the fuse listed
  • It is acceptable to use circuit breaker with a lower rating than the cable is rated for
  • Refer to ABYC E-11, "AC and DC Electrical Systems on Boats" or contact a qualified marine electrician


$ 56.25 $ 56.25 $ 62.46

  • Amp Rating
Contact Us

Specifications

Amp Rating 30 Amps (12 AWG Min), 40 Amps (10 AWG Min), 50 Amps (8 AWG Min), 60 Amps (6 AWG Min), 100 Amps (4 AWG Min), 125 Amps (2 AWG Min), 150 Amps (1 AWG Min)
