Next Gen 3.5 kW Marine Diesel Generator

(3 reviews)

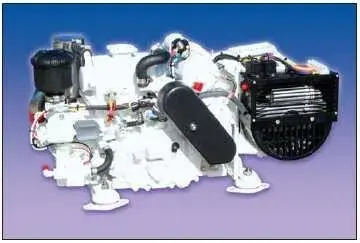

The NextGen UCM1-3.5 Marine Diesel Generator from Next Generation Power Engineering (NextGen) is one of the lightest, most compact and efficient diesel gen-sets in its class. NextGen diesel generators are well known for their reliability and ease of maintenance.
  • Mid speed operation provides low sound and vibration levels
  • Lower operating speeds to reduce sound levels and increase life expectancy
  • Fully fresh water marinized heavy duty Kubota diesel engine for trouble free operation
  • Average fuel consumption to just 2/10 GPH
  • Ultra compact size and light-weight construction

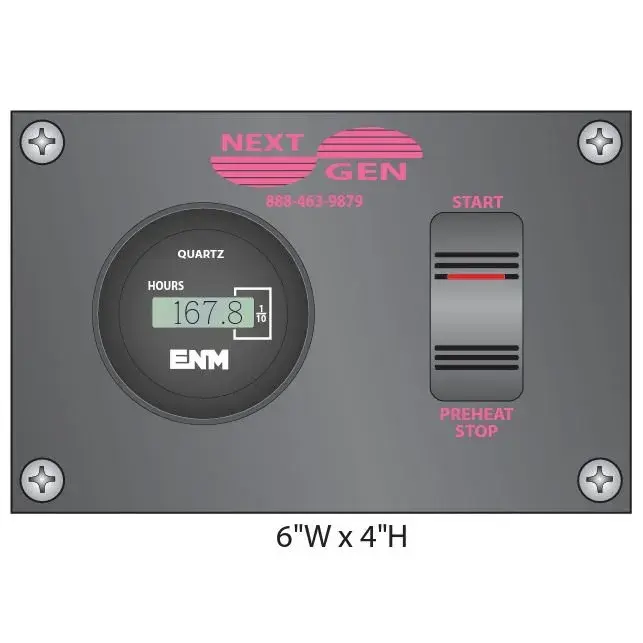

  • Panel dimensions: 6" W x 4" H
  • Power output: 3.5 kW Peak, 3.2 kW Continuous
  • Dimensions: 28" W x 15.5" D x 15" H
  • Weight: 160 lb
  • Noise Level at 7 ft [2 m]: 72 dB
  • Dimensions: 30" W x 18" D x 16.5" H
  • Weight: 200 lb
  • Noise Level at 7 ft [2 m]: 63 dB

NextGen 3.5
Panda 4200
Engine RPM
2800
3600
Enclosure Dims
30x18x16.5
20.5x14.6x20.5
Panel
6: x 4"
5.1" x 2.8"
Weight
200 lb
230 lb
Noise Level at 7 ft
63 dB
65 dB
Power Output
3.5 kW Peak
3.3 kW Cont.
4.1 kW Peak
3.7 kW Cont.

The Next Gen 3.5 kW marine diesel generator makes a very reliable power source for off-grid cruising, or running air conditioning for a hot afternoon on the water. Quiet and easy to maintain, the UCM1-3.5 is a great choice for small to medium size yachts. The NextGen 3.5 may be a good replacement for a Fisher Panda 4200/4000, but is almost 10 inches wider so check your installation space.

Simple to maintain, and easy on the wallet, this is a great little genset for smaller vessels. If the mounting base is at or below the waterline (heeled or otherwise), you will need to install a vented loop to protect the generator and prevent flooding your boat. If your boat is a high-speed planing hull, the added hydrodynamic pressure while on plane can be enough to force water into the generator if it is not running. Get in the habit of closing the seacock when the generator is not in use.

We recommend a round strainer on the hull (never a scoop!) to keep large debris (sargassum, jellyfish, shopping bags) from blocking the water intake.
Please note: If you are installing on a boat that has gasoline engines for the main propulsion, you need to order with the Ignition Protection option. Remember to never store portable gasoline containers below deck.

* 120/240 VAC, 4-Wire installation requires additional circuit protection and load balancing within 500 watts.

Special Order Only. Usually ships in 1-2 Weeks.
UCM1-3.5
$ 8,856.00 $ 8,856.00 $ 11,350.00
$ 8,856.00 $ 11,350.00

  • Brand
  • Output kW
  • Sound Enclosure
  • Output Voltage
  • Remote Harness
  • Optional Add-Ons
Contact Us

Specifications

Sound Enclosure No Enclosure, With Enclosure
Output Voltage 120 VAC 60 Hz (3-Wire), 240 VAC 60 Hz (3-Wire), 120/240 VAC 60 Hz (4-Wire) *, 240 VAC 50 Hz (Euro 3-Wire)
Remote Harness 10' Long, 20' Long, 30' Long
Optional Add-Ons Ignition Protection, Vented Loop (With Enclosure), Vented Loop (No Enclosure), Extra Isolation Mounts
Brand NextGen
Output kW 3.5 kW
