Next Gen 5.5 kW Marine Diesel Generator

(3 reviews)
The NextGen UCM2-5.5 Marine Diesel Generator from Next Generation Power Engineering (NextGen) is perfect for mid-size vessels, or as a back-up for large vessels. NextGen diesel generators are well known for their reliability and ease of maintenance.

  • Mid speed operation provides low sound and vibration levels
  • Lower operating speeds to reduce sound levels and increase life expectancy
  • Fully fresh water marinized heavy duty Kubota diesel engine for trouble free operation
  • Average fuel consumption to just 3/10 GPH
  • Ultra compact size and light-weight construction

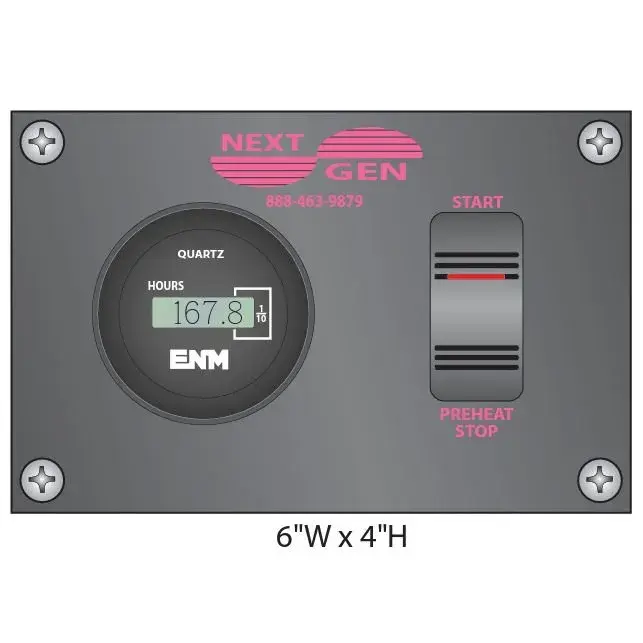

  • Panel dimensions: 6" W x 4" H
  • Power output: 5.5 kW Peak, 5.0 kW Continuous
  • Dimensions: 23" W x 17" D x 20" H
  • Weight: 230 lb
  • Noise Level at 7 ft [2 m]: 72 dB
  • Dimensions: 25.5" W x 20" D x 21" H
  • Weight: 270 lb
  • Noise Level at 7 ft [2 m]: 63 dB

NextGen 5.5E
Panda 5000
Engine RPM
2800
3600
Enclosure Dims
25.5w|20d|21h
21.3w|17.5d|21.9h
Panel
6" x 4"
5.1" x 2.8"
Weight
270 lb
268 lb
Noise Level at 7 ft
63 dB
65 dB
Power Output
5.5 kW Peak
5.0 kW Cont.
5.0 kW Nominal

The NextGen 5.5 kW marine diesel generator makes a very reliable power source for off-grid cruising, or running air conditioning for a hot afternoon on the water. Quiet and easy to maintain, the UCM2-5.5 or UCM2-5.5E is a great choice for medium size yachts.This generator offers plenty of power for most boats that use twin 30 amp shore power circuits.

Simple to maintain, and easy on the wallet, this is a great little genset for smaller vessels. If the mounting base is at or below the waterline (heeled or otherwise), you will need to install a vented loop to protect the generator and prevent flooding your boat. If your boat is a high-speed planing hull, the added hydrodynamic pressure while on plane can be enough to force water into the generator if it is not running. Get in the habit of closing the seacock when the generator is not in use.

We recommend a round strainer on the hull (never a scoop!) to keep large debris (sargassum, jellyfish, shopping bags) from blocking the water intake.

Please note: If you are installing on a boat that has gasoline engines for the main propulsion, you need to order with the Ignition Protection option.
Remember to never store portable gasoline containers below deck.

* 120/240 VAC, 4-Wire installation requires additional circuit protection and load balancing within 600 watts.

Special Order Only. Usually ships in 1-2 weeks.


UCM2-5.5
$ 9,986.00 $ 9,986.00 $ 13,750.00

  • Brand
  • Output kW
  • Sound Enclosure
  • Output Voltage
  • Remote Panel
  • Remote Harness
  • Optional Add-Ons
Contact Us

Specifications

All
Brand NextGen
Generators
Sound Enclosure No Enclosure, With Enclosure
Output Voltage 120 VAC 60 Hz (3-Wire), 240 VAC 60 Hz (3-Wire), 120/240 VAC 60 Hz (4-Wire) *, 240 VAC 50 Hz (Euro 3-Wire)

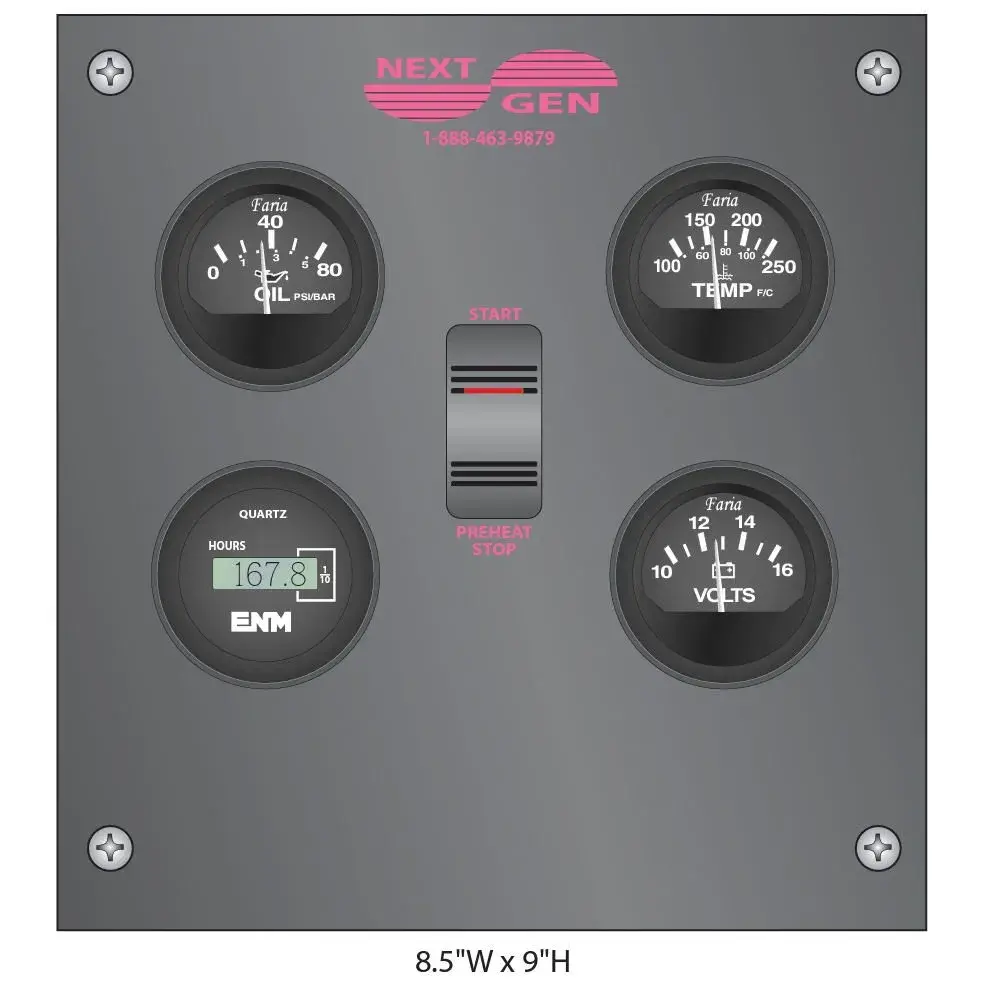

Remote Panel Basic Panel, 4-Gauge Panel
Remote Harness 10' Long, 20' Long, 30' Long
Optional Add-Ons Ignition Protection, 35 Amp Alternator, Vented Loop (With Enclosure), Vented Loop (No Enclosure), Extra Isolation Mounts
Output kW 5.5 kW
